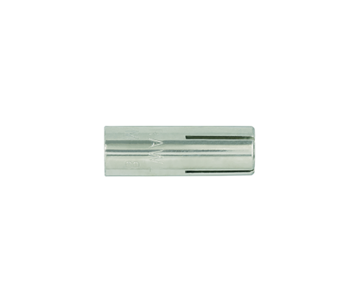

R-DCA Wedge Anchor

Internally threaded wedge anchor for simple hammer-set installation

Features and benefits

  • High performance in cracked and non-cracked concrete confirmed by ETA
  • Product recommended for applications requiring fire resistance
  • Internally threaded to be used with threaded stud or bolt
  • Easy to install by hammer action
Base material
  • Cracked concrete C20/25-C50/60
  • Non-cracked concrete C20/25-C50/60
  • Unreinforced concrete
  • Reinforced concrete
Applications
  • Pipelines systems
  • Ventilation systems
  • Sprinkler systems
  • Cable conduits and wires
  • Gratings
Installation guide
  1. Drill a hole of required diameter and depth
  2. Clear the hole of drilling dust and debris (using blowpump or equivalent method)
  3. Insert wedge anchor, slotted end first
  4. Use the setting tool to drive the internal wedge into the anchor
  5. Insert bolt or stud through fixture and tighten to the recommended torque
