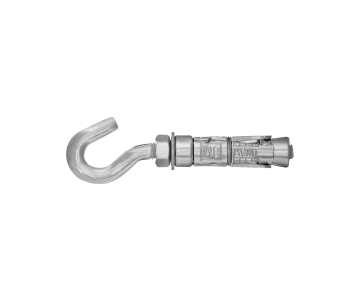

R-RBL-H Rawlbolt - Hook Bolt

World's most popular all-purpose expanding shield anchor - hook bolt version

Hook designed & manufactured for maximum performance
Product recommended for applications requiring fire resistance
Three-pieces expanding sleeve of maximum expansion provides optimal load and safety of use in any substrate
Hook Rawlbolts are not suitable for all arrest systems nor shock loading

Base material

Concrete

Natural Stone

Hollow-core Slab

Hollow Brick

Applications

Supporting guy ropes, stays and cables

Supporting ladder restraints

Installation guide

Drill a hole of required diameter and depth. Note: When fixing into brickwork, mortar joints should be avoided
Clear the hole of drilling dust and debris (using blowpump or equivalent method)
Insert the anchor (tap home until flush with surface) and position hook accordingly
Tighten to recommended torque, using the hex nut (not the hook)
